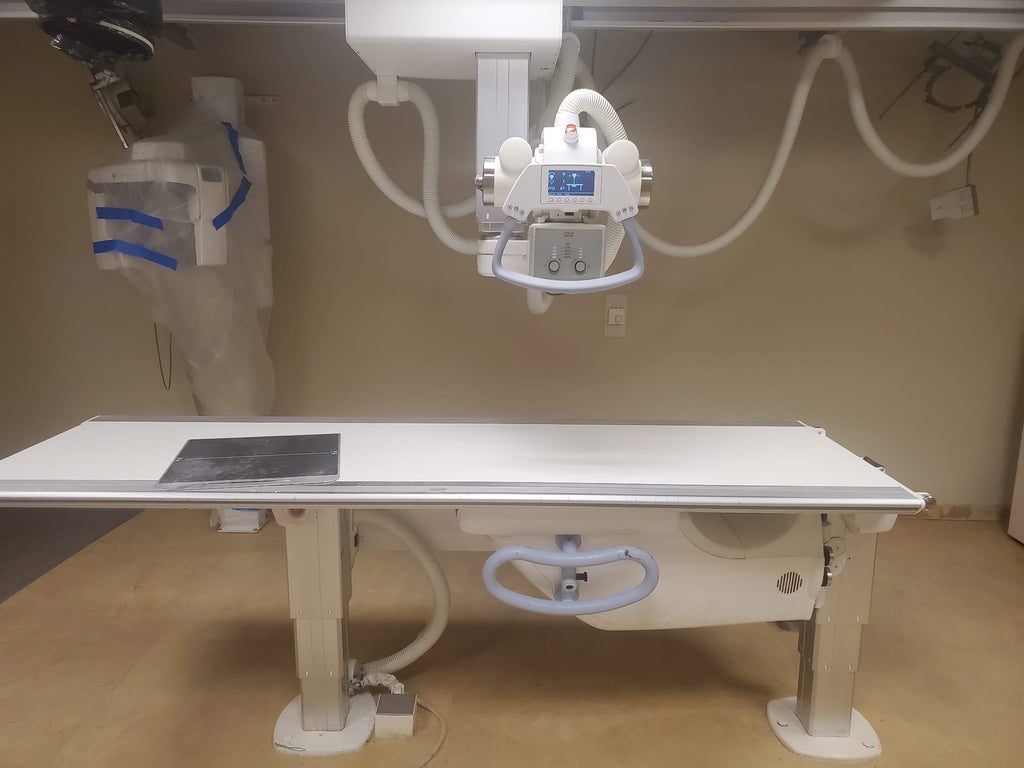

IDC Xplorer 1590 Digital Rad Room 2006

DESCRIPTION

Features

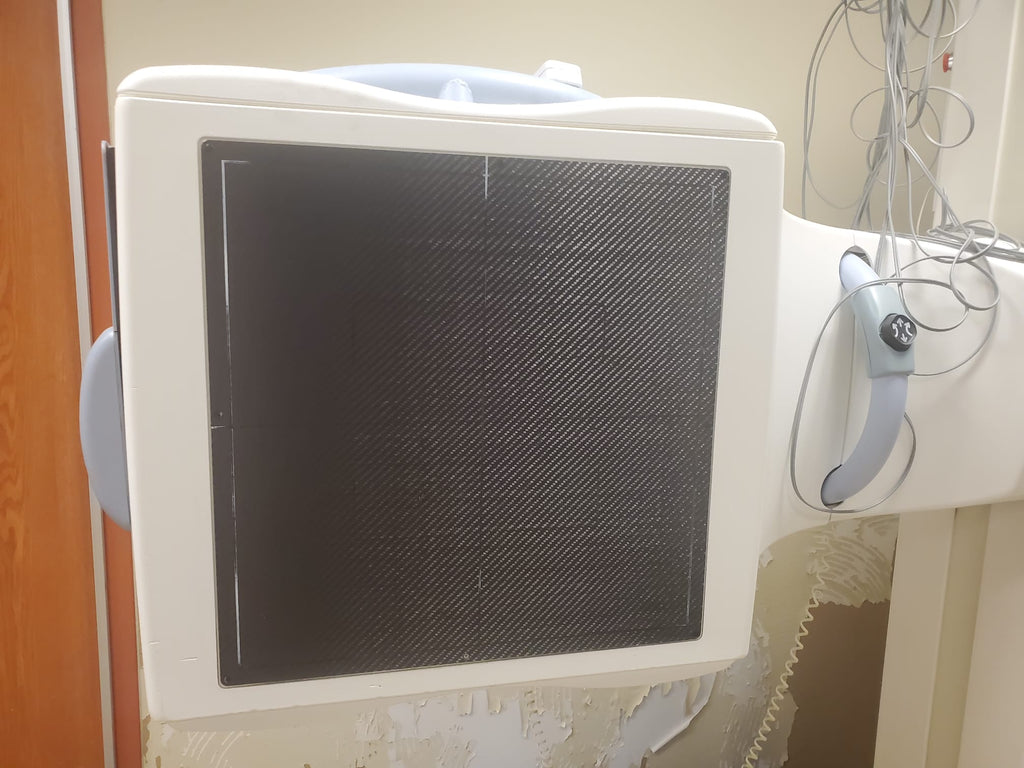

X4C IMAGING DETECTOR SPECIFICATIONS

• Detector Array: Full field, single VHD CCD
• Active Image Size:  43 cm x 43 cm (17” x 17”)
• Imaging Pixels:  4,096 x 4,096 (16 Megapixel)
• Pixel Size:  108 microns
• Nyquist Resolution: 4.6 lp/mm
• Bit Depth: 14 bit capture
• Fill Factor: 100%
• Preview Image: Approximately 6 seconds
• Processed Image Display: Approximately 10 seconds
• Imaging Detector Weight: 75 kg (165 lb)

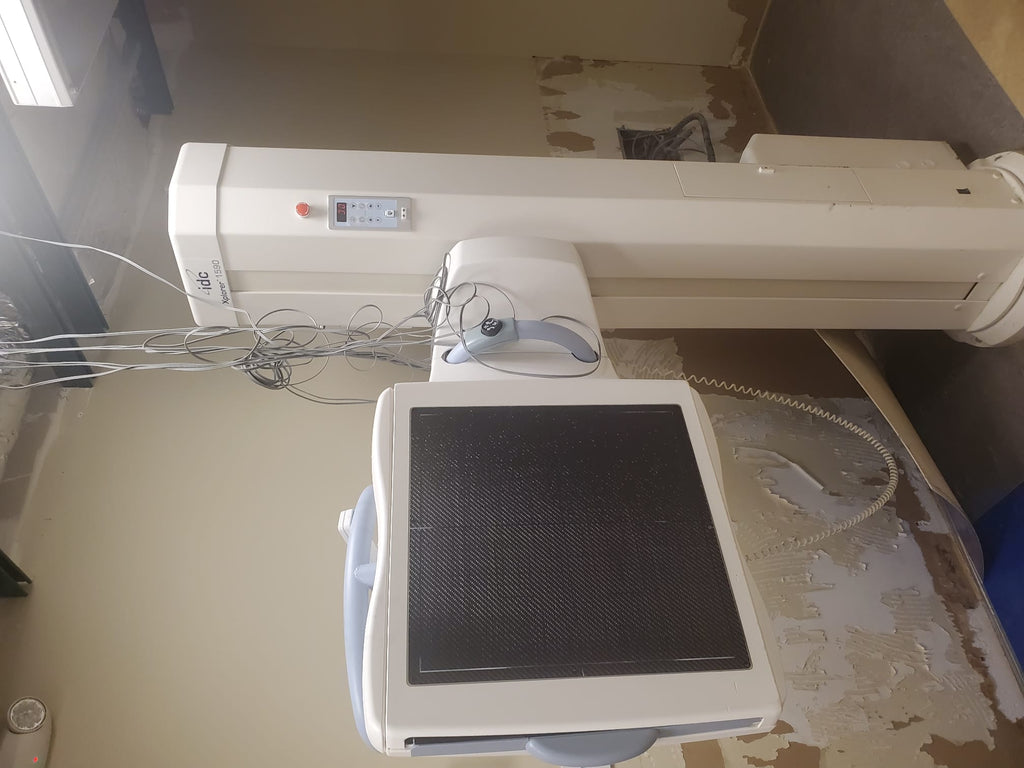

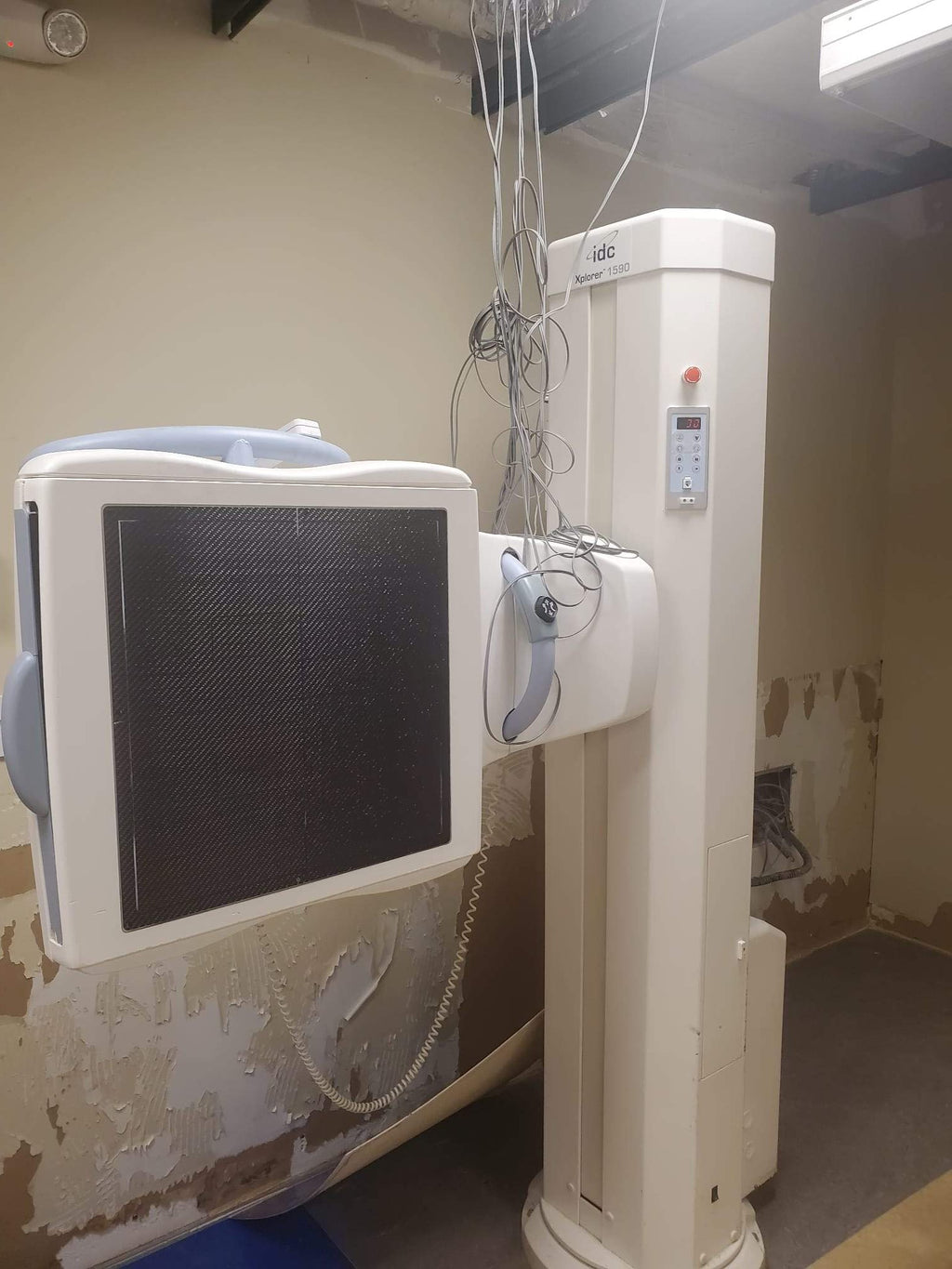

STAND FUNCTION SPECIFICATIONS

•  Vertical travel (motorized): 34 cm (13.5”) to 156 cm (61”)
• (minimum to maximum height) at the centre of the imaging area
• Horizontal swing travel (manual):  180°
• Detector head rotation (motorized) 0 - 90° (left or right handed)

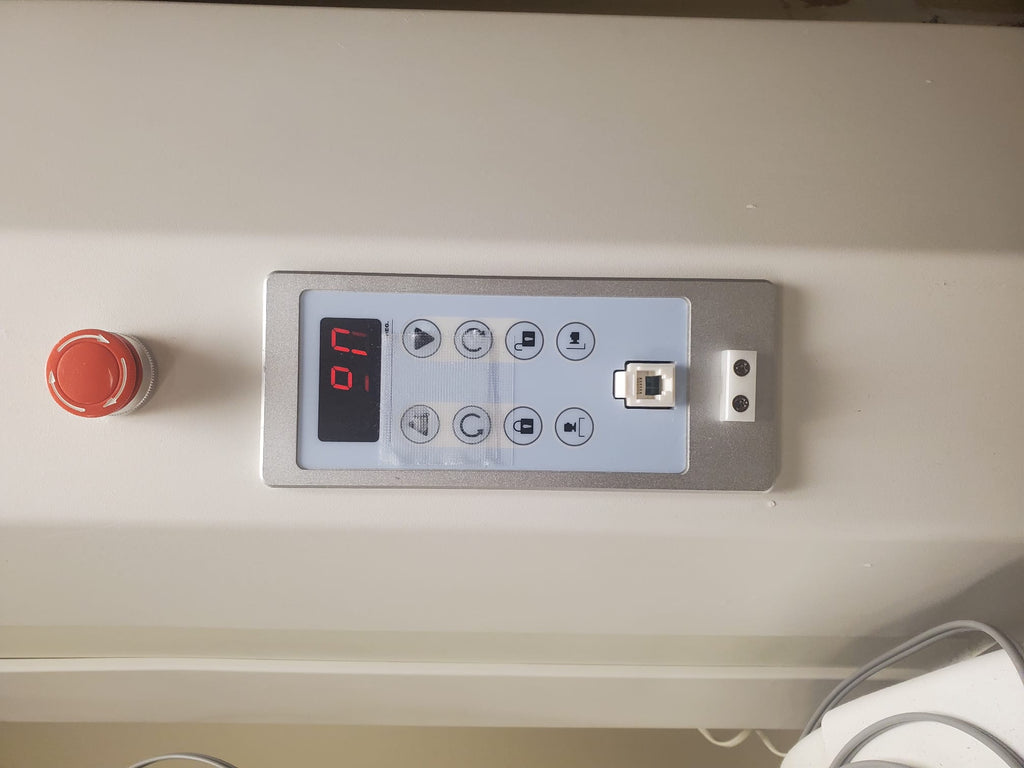

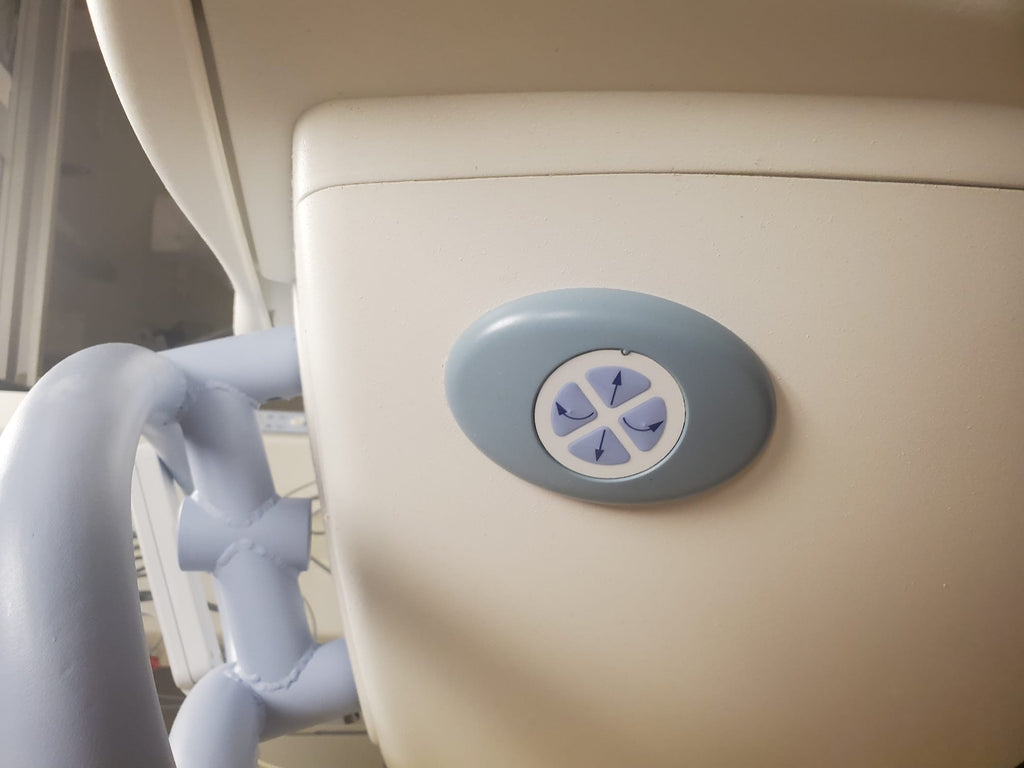

• Operator Controls Remote control or manual
• switches on imaging detector
• Dimensions (L x W x H) 48 x 48 x 201 cm (19 x 19 x 83”)
• Vertical Stand Weight 340 kg (748 lb)

POWER REQUIREMENTS

• 1590 Stand Dedicated 240V, 15A, 50/60Hz
• Technologist Workstation 110 – 250V, 10A, 50/60H
